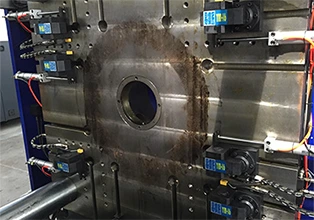

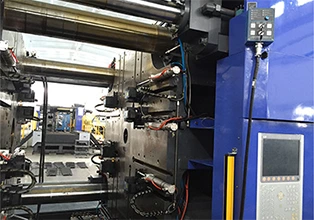

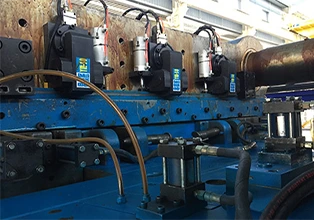

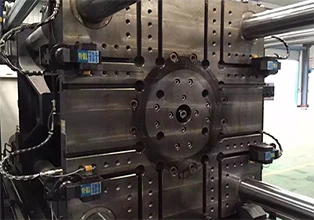

QDC-YM Series
QDC-YM Series
QDC-YM Series
- Omron PLC control system
- Reduce die change timing
- Reduce human risk
- Reduce labor cost and strength
- Independent power unit
Parameters
| IMM Capacity (T) | Hyd.Clamps Type | Unit Clamping Force (T) | Fixed Platen Qty. | Movable Platen Qty. | Max Clamping Force (T) |
|---|---|---|---|---|---|
| 60-120 | YM2 | 2 | 4 | 4 | 8 |
| 160-250 | YM4 | 4 | 4 | 4 | 16 |
| 280-380 | YM6 | 6 | 4 | 4 | 24 |
| 470-530 | YM10 | 10 | 4 | 4 | 40 |
| 600 | YM10 | 10 | 6 | 6 | 60 |
| 700-900 | YM16 | 16 | 4 | 4 | 64 |
| 1000-1300 | YM16 | 16 | 6 | 6 | 96 |
| 1400 | YM25 | 25 | 4 | 4 | 100 |
| 1600-1850 | YM25 | 25 | 6 | 6 | 150 |
| 2100-2800 | YM25 | 25 | 8 | 8 | 200 |
| 3300 | YM50 | 50 | 6 | 6 | 300 |
| 4000 | YM50 | 50 | 8 | 8 | 400 |
