Mechanical Mold Flipper 90°
Mechanical Mold Flipper 90°

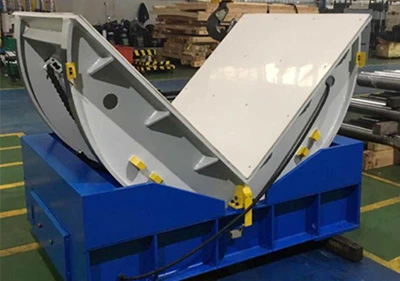

Mechanical- Mold Flipper
- Electrical motor driven

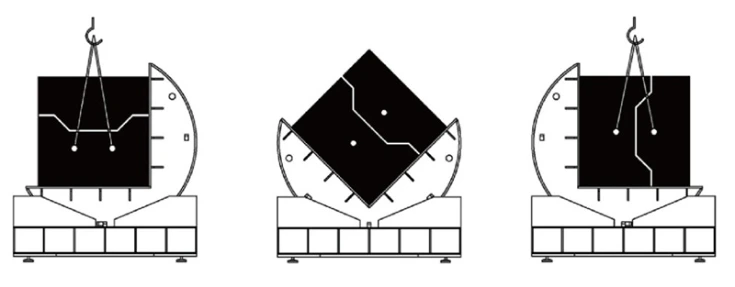

- Make the mold & die reverse at 90 degree
- Fast and convenient overturning process
- Double rails and bush roller chain ensure stable revolving
- Travel switch limit rotation bracket on the 90 degree position
- Electric cabinet &moveable operation panel and button
- Easy operation
Parameters
| Model | Overturn Capacity( T ) | Table Size(mm) | Table Height(mm) H1 |
|---|---|---|---|
| FMG-5T | 5 | 1200*1200 | 580 |
| FMG-10T | 10 | 1400*1400 | 680 |
| FMG-15T | 15 | 1700*1700 | 780 |
| FMG-20T | 20 | 2000*2000 | 930 |
| FMG-30T | 30 | 2000*2000 | 965 |
| FMG-40T | 40 | 2000*2500 | 1025 |
| FMG-50T | 50 | 2500*2500 | 1230 |
| FMG-70T | 70 | 2500*3000 | 1310 |
*Max. clamping force and platen dimension can be customized
Why Mold Flipper

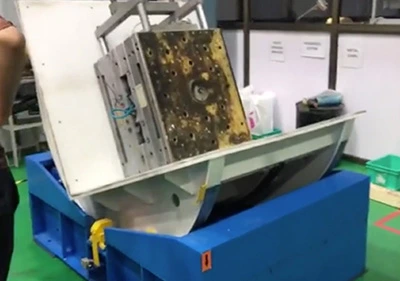

Now turning the large dies / moulds is safer and quicker. When any die / mould used in horizontal Injection moulding or Die Casting Machine is to be opened for maintenance, it requires to be turned 90 degree first. Smaller moulds are easier to turn 90 degree, However when moulds are very big and heavy, it’s a very risky, time taking and laborious job. We have two solutions for this – 90 degree Mould Flipper and 180 degree Mould Flipper.
Advantages of Die Flipper
- Electrical motor driven.
- Economical and free maintenance.
- Less space demand.
- More than 10 years’ experience in researching and producing mold flipper.
