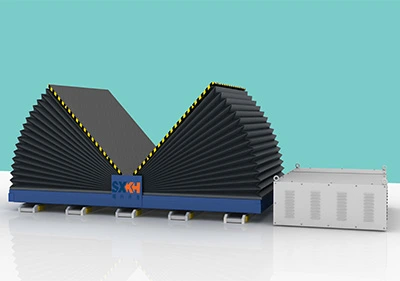

Hydraulic Mold Flipper
Hydraulic Mold Flipper
Hydraulic Mold Flipper
- Hydraulic cylinder driven
- Make the mold & die reverse at 90 degree
- Fast and convenient overturning process
- The tables can rest at 180 degree
- Whole hydraulic system can be accommodated in pit
- Easy operation
Parameters
| Model | Overturn Capacity( T ) | Table size （mm) | Table Height(mm) H1 |
|---|---|---|---|
| PFM-5T | 5 | 1100*1250 | 390 |
| PFM-10T | 10 | 1300*1400 | 420 |
| PFM-15T | 15 | 1500*1700 | 445 |
| PFM-20T | 20 | 1600*2000 | 530 |
| PFM-30T | 30 | 2000*2000 | 565 |
| PFM-50T | 50 | 2600*2500 | 660 |
*Max. clamping force and platen dimension can be customized
Why SXKH India

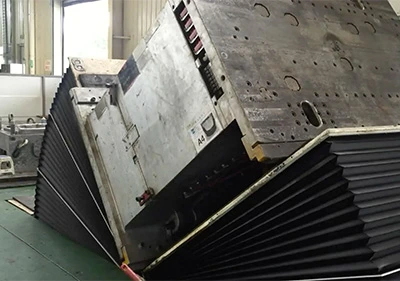

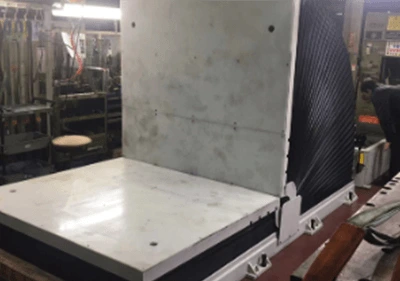

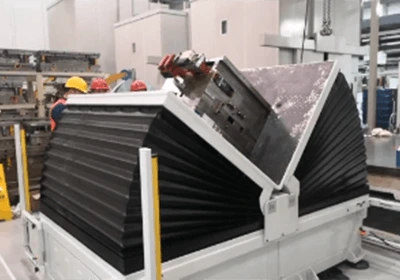

Now turning the large dies / moulds is safer and quicker. When any die / mould used in horizontal Injection moulding or Die Casting Machine is to be opened for maintenance, it requires to be turned 90 degree first. Smaller moulds are easier to turn 90 degree. However, when moulds are very big and heavy, it’s a very risky, time taking and laborious job. We have two solutions for this 90 degree Mould Flipper and 180 degree Mould Flipper.
Advantages
- Hydraulic cylinder driven, very safe to flip the mould by 90 degree.
- Save time, manpower and operator’s fatigue.
- Less space demand.
- More than 10 years’ experience in researching and producing mold flipper.
